Product description

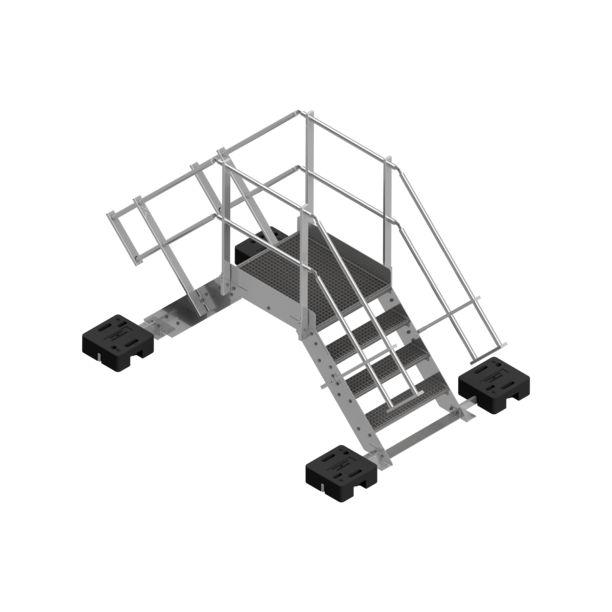

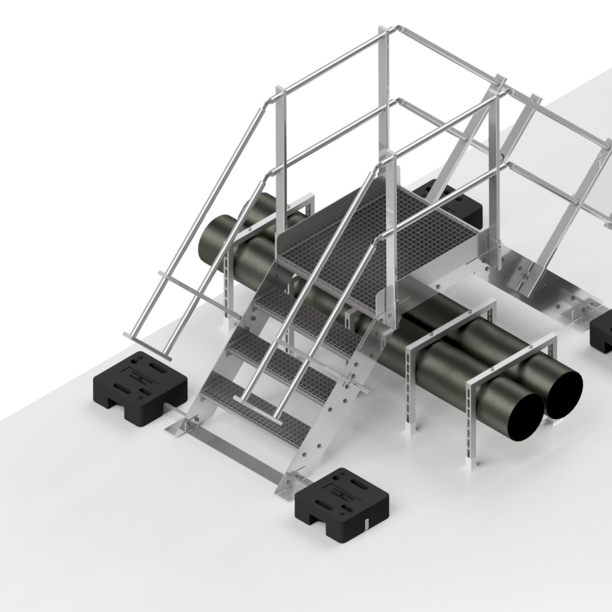

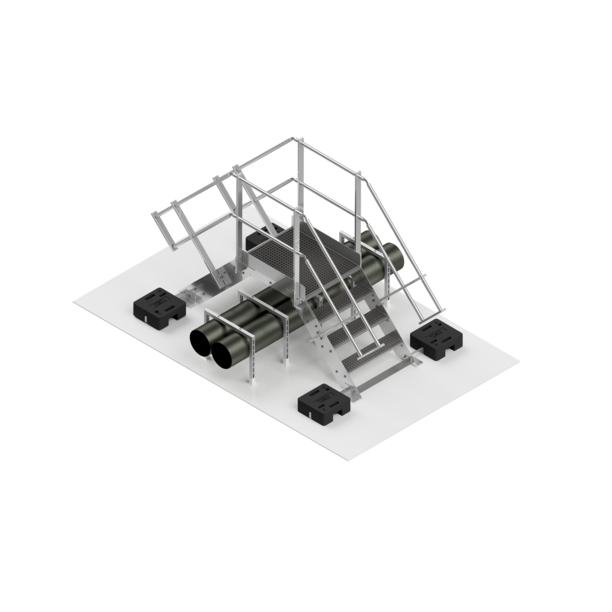

The SKB roof crossing 45°: our classic. Provides a safe solution for access to flat roofs or helps when climbing over pipes or other roof structures. Made of high-quality aluminum, it meets the certifications as a side protection system and machine access. The sturdy plastic weights made from recycled material ensure high stability. The step-over is available in various sizes and widths. Stress-free assembly included.

Special versions are available depending on height.

direct request

Product data

  • Product type:Crossings
  • Certification:DIN EN 13374, DIN EN ISO 14122
  • Material:Aluminium
  • Inclination:45°
  • Width:600 / 800 / 1000 mm
  • Mounting:Load bearing
  • Plastic weights:25 kg
Product variantsDownloads & Service

Variants

Key data at a glance

All product variants

VersionArticle numberClearance heightClearance lengthNumber of steps
SKB roof crossing 45°/1on request300 mm1350 mm1 x 1
SKB roof crossing 45°/2on request300 mm1765 mm2 x 2
SKB roof crossing 45°/3on request720 mm2180 mm3 x 3
SKB roof crossing 45°/4on request930 mm2595 mm4 x 4
SKB roof crossing 45°/5on request1140 mm3010 mm5 x 5
SKB roof crossing 45°/6on request1350 mm3425 mm6 x 6
