Access Technology

Onwards and upwards

Product description

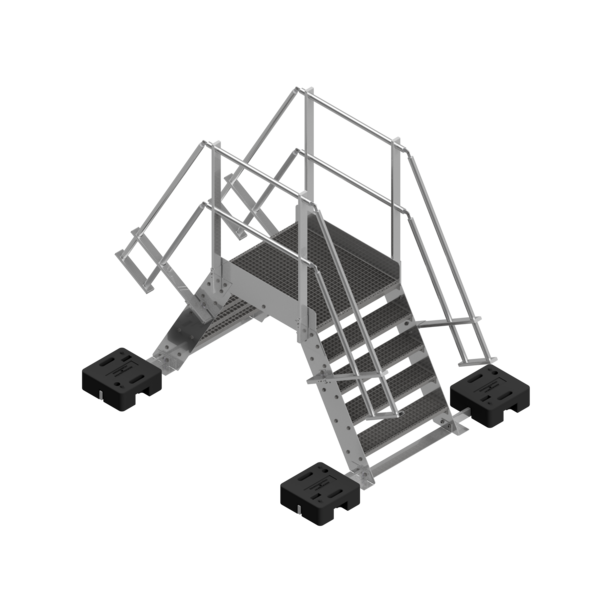

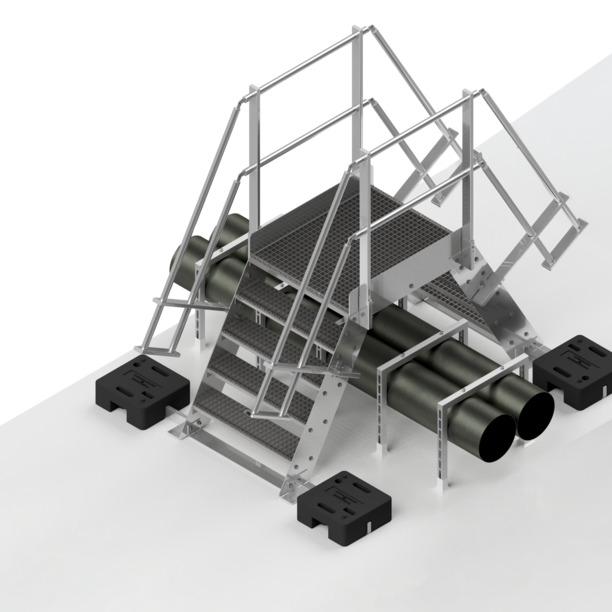

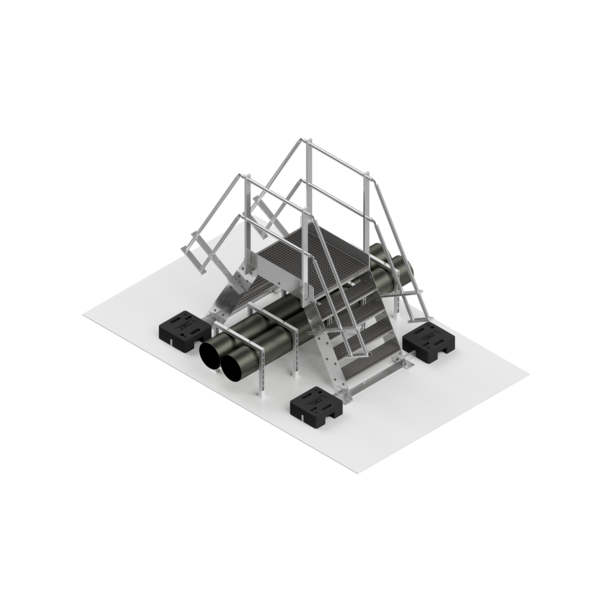

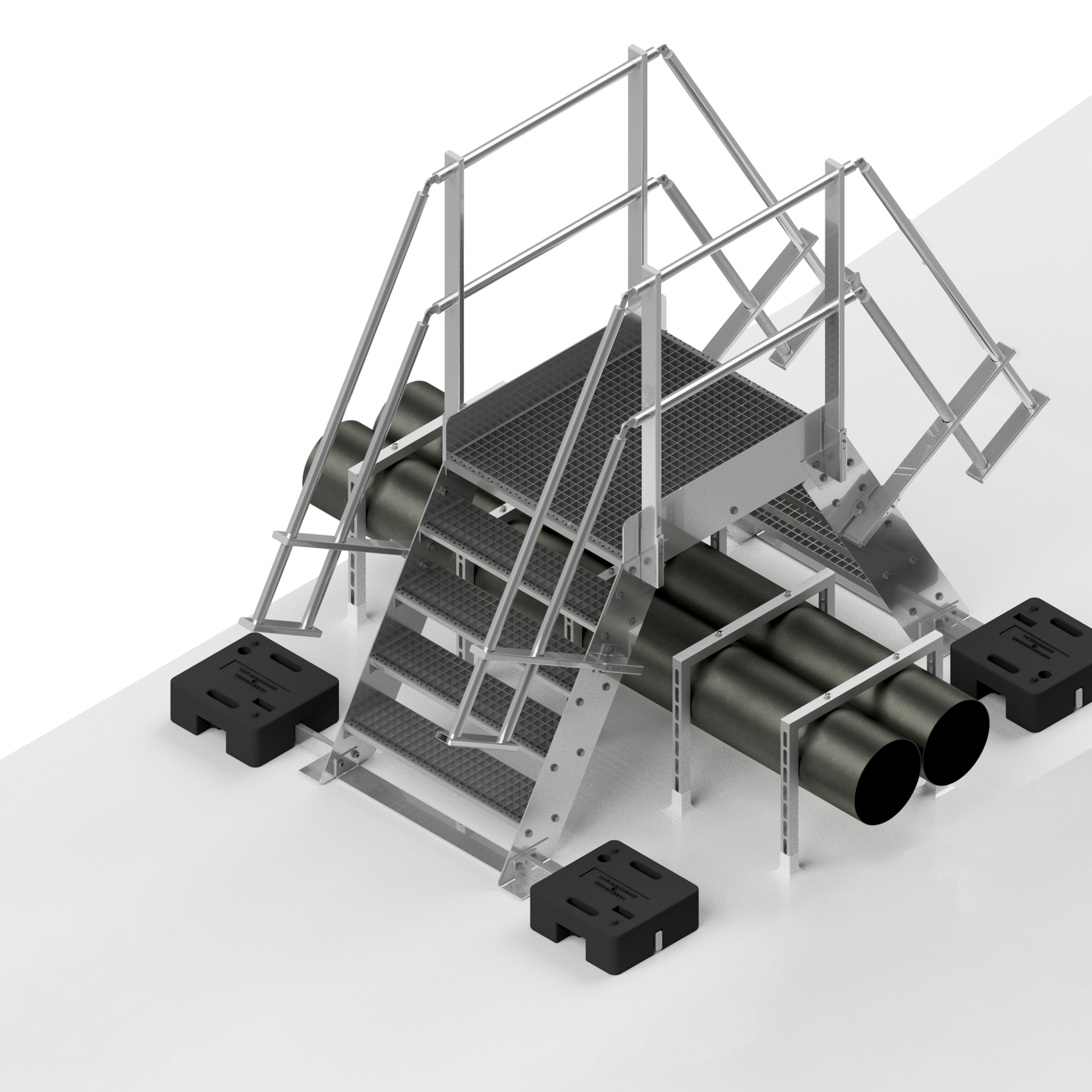

The SKB roof crossing 60° offers a safe access solution for slightly pitched flat roofs. Made from high-quality aluminum and certified as a side protection system and machine access, it is ideal for bitumen, foil and concrete roofs. The recycled plastic weights ensure high stability, while the step-over is available in various sizes. Easy installation and extremely low maintenance included.

Special versions are available depending on height.

direct request

Product data

  • Product type:Crossings
  • Certification:DIN EN 13374, DIN EN ISO 14122
  • Material:Aluminium
  • Inclination:60°
  • Width:600 / 800 / 1000 mm
  • Mounting:Load bearing
  • Plastic weights:25 kg
Product variantsDownloads & Service

Variants

Key data at a glance

All product variants

VersionArticle numberClearance heightClearance lengthNumber of steps
SKB roof crossing 60°/1on request280 mm1000 mm1 x 1
SKB roof crossing 60°/2on request480 mm1220 mm2 x 2
SKB roof crossing 60°/3on request680 mm1440 mm3 x 3
SKB roof crossing 60°/4on request880 mm1660 mm4 x 4
SKB roof crossing 60°/5on request1080 mm1880 mm5 x 5
SKB roof crossing 60°/6on request1280 mm2100 mm6 x 6
